The Ultimate Digital Microscope Software for Precision Analysis
Elevate your analysis with MicroVision Suite, the professional microscope camera software designed for metallography, quality control, and detailed image stacking. Move beyond basic tools and unlock the full potential of your equipment.
Microscope Imaging Software Features
01. Extended Depth of Focus (EDOF)
Overcome the physical limitations of your optical microscope. Our advanced EDOF technology solves the problem of shallow depth of field by intelligently merging multiple images into one perfectly sharp composite. This feature is essential for detailed metallography and circuit board inspection, ensuring no detail is lost in blur. It’s the core of our microscope software, designed for ultimate clarity.
02. Integrated Measurement Tools
Transform your visual data into quantitative results. MicroVision turns your setup into a powerful digital microscope with measurement software. Perform precise, on-screen measurements of lengths, areas, and angles directly on live or captured images. Our intuitive toolkit eliminates manual errors and speeds up your entire analysis process, making it a leading digital microscope program for quality control.
03. Integrated Vickers Hardness Testing
Simply select the appropriate force scale (e.g., HV 0.5, HV 10) and draw the two diagonals of the indentation on your captured image. The software instantly calculates and displays the Vickers hardness value based on your pre-set calibration. This eliminates manual calculations and transcription errors, providing fast and accurate results for your reports.
04. Grain Size Analysis (ASTM E112)
Our software implements both Planimetric (Watershed) and Intercept methods compliant with ASTM E112. With a powerful pre-processing toolkit, including CLAHE for contrast enhancement and advanced noise filters, you can accurately segment grain boundaries even on challenging samples. For ultimate precision, a manual eraser tool allows you to refine the binary image before the final calculation, ensuring your G-number results are both repeatable and reliable.
05. Advanced Phase Analysis
Accurately quantify material phases with our sophisticated analysis tool. Instead of relying on simple color thresholds, our program utilizes the CIELAB (L*a*b*) color space to calculate the perceptual color distance (Delta E) from a selected reference point. This method is far more robust against variations in lighting and provides highly accurate percentage calculations for phases like ferrite, pearlite, or other distinct components in your microstructure.
06. Real-Time Image Enhancement Controls
Don’t waste time with post-processing. Our digital microscope software gives you the power to perfect your image before you even capture it. Instantly adjust brightness and contrast with intuitive sliders. Correct color casts from your lighting source using advanced White Balance controls for Temperature and Tint. What you see on the screen is exactly what you get, ensuring a perfect raw image for every analysis.
MicroVision Suite is designed for maximum flexibility. It’s a comprehensive solution that integrates with the USB microscope and camera you already own, freeing you from proprietary hardware ecosystems. Whether you’re in quality control, materials research, or a university lab, our software provides the power and versatility you need to get the job done.

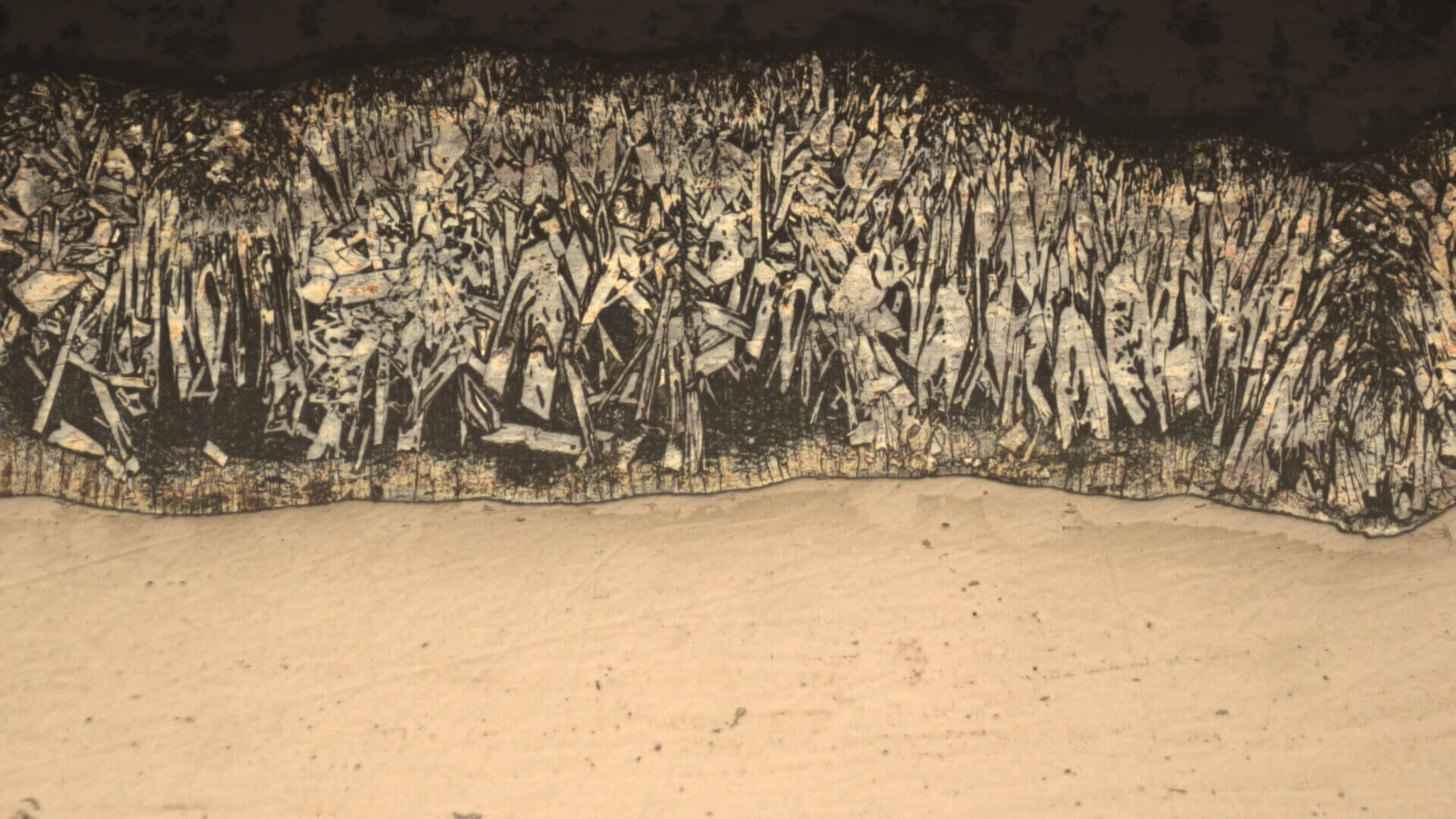

Before and After Extended Depth of Focus (EDOF)
Universal Compatibility for Your Lab
MicroVision Suite is designed to be a flexible and universal USB microscope software solution. It seamlessly integrates with a wide range of cameras and microscopes, making it the perfect upgrade or replacement for proprietary software. Whether you are looking to enhance your current setup or seeking a more powerful alternative to your existing Dino Lite software or Amscope software, our program provides the compatibility you need.
