Grain size plays a critical role in determining the mechanical properties of metals, including strength, toughness, and fatigue resistance. One of the most widely used standards for measuring grain size in metallography is ASTM E112. This standard provides several methods to quantify grain size in a consistent and repeatable way, making it essential for quality control, research, and industrial applications.
What is ASTM E112?
ASTM E112 is a standard test method that defines procedures for determining the average grain size of metallic materials. It applies primarily to materials with equiaxed grain structures and is commonly used in steel, aluminum, and other alloys.
Grain size is typically expressed as a grain size number (G), which is inversely related to the actual grain size. In simple terms, a higher G number means smaller grains, while a lower G number indicates larger grains.
Methods of Grain Size Measurement
ASTM E112 outlines several different techniques, each suited for specific types of microstructures and accuracy requirements.
1. Comparison Method
This is the fastest and most commonly used method.

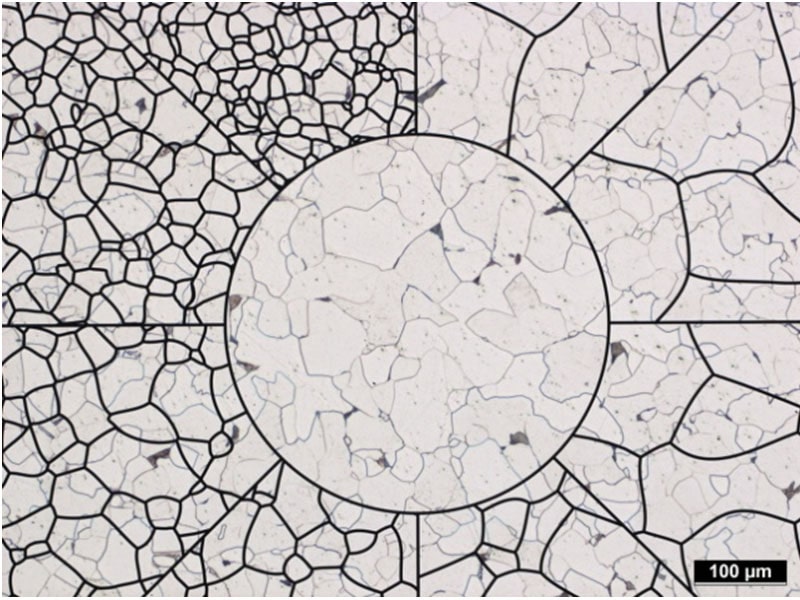

- The microstructure image is visually compared with standardized grain size charts.
- The closest match determines the grain size number.
Advantages:
- Quick and simple
- No complex calculations required
Limitations:
- Subjective (depends on operator experience)
2. Planimetric Method (Jeffries Method)
This method involves counting the number of grains within a known area.
Steps:
- Draw a test circle or area on the micrograph.
- Count fully enclosed grains and estimate partially intersected grains.
- Calculate grain density.
This method is more accurate than the comparison method but also more time-consuming.
3. Intercept Method
The intercept method measures the number of grain boundary intersections along a test line.
Steps:
- Draw one or more straight lines across the image.
- Count how many times the line crosses grain boundaries.
- Use the average intercept length to calculate grain size.
Advantages:
- More objective
- Suitable for elongated grains
Grain Size Formula
The ASTM grain size number is calculated using the formula:G=log2(N)+1
Where:
- G = ASTM grain size number
- N = number of grains per square inch at 100x magnification
This logarithmic relationship allows a wide range of grain sizes to be expressed in a standardized way.
Practical Example
Let’s say you analyze a microstructure at 100x magnification and count 64 grains per square inch.G=log2(64)+1=6+1=7
So, the material has a grain size number of G = 7, indicating relatively fine grains.
Why Grain Size Matters
Grain size directly influences material properties:
- Smaller grains → higher strength (Hall-Petch relationship)
- Larger grains → better ductility and creep resistance
In industries such as aerospace, automotive, and energy, controlling grain size is essential for ensuring performance and safety.
Applications in Industry
ASTM E112 is widely used in:
- Quality control in steel production
- Failure analysis
- Heat treatment validation
- Research and development
It ensures that materials meet required specifications and behave predictably under stress.
Conclusion
ASTM E112 provides a reliable framework for measuring grain size using multiple methods, from quick visual comparison to precise quantitative techniques. Whether you are performing routine inspections or advanced materials research, understanding and applying these methods is crucial.
As metallography continues to evolve, traditional ASTM methods remain the foundation for accurate microstructural analysis—often complemented by modern digital and AI-based tools.
